Medium Voltage – Range, Importance & Applications

What is Medium Voltage?

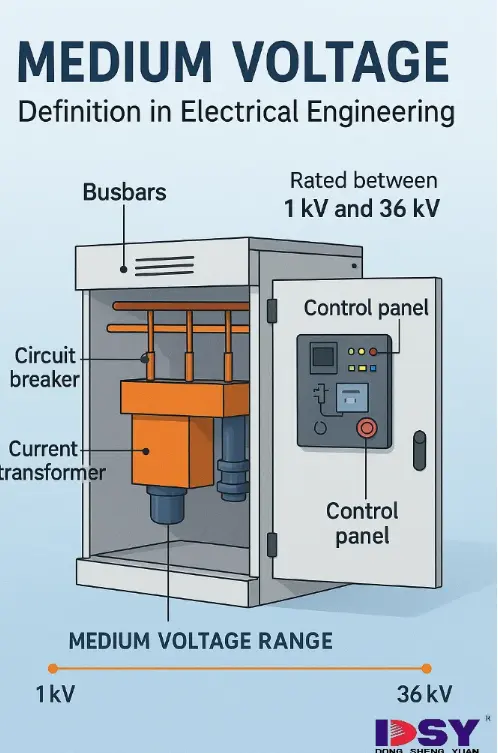

Medium voltage is a fundamental classification in power systems that defines electrical equipment operating between 1 kilovolt (kV) and 36 kV. It plays a critical role in ensuring the safe and reliable distribution of electricity in various industrial and commercial infrastructures.

It acts as the bridge between low-voltage consumer systems and high-voltage transmission networks, handling distribution over long distances and ensuring proper control through devices like switchgear and transformers.

---

Switchgear Definition in Electrical Engineering

Switchgear refers to the devices used to control, protect, and isolate electrical circuits. In medium voltage systems, switchgear ensures fault protection and operational continuity in critical applications.

---

Voltage Classification Overview

Electrical voltages are typically categorized as:

Low Voltage (LV) – up to 1 kV

Medium Voltage (MV) – 1 kV to 36 kV

High Voltage (HV) – above 36 kV

---

Voltage Levels: Low, Medium, and High

Low Voltage (LV): Characteristics & Usage

Voltage: ≤ 1 kV

Used in homes, small offices, and devices

Safe for general public contact

Medium Voltage (MV): Where It Fits

Voltage: 1 kV to 36 kV

Used in commercial, industrial, and municipal grids

Requires professional handling and protective equipment

High Voltage (HV): Industrial Scope

Voltage: >36 kV

Used in bulk transmission over long distances

Limited to national grids and major power plants

---

Typical Range of Medium Voltage

Standard Ranges: 1 kV to 36 kV

Most global utilities classify medium voltage as 1 kV to 36 kV, although specific countries may define sub-ranges like:

3.3 kV

6.6 kV

11 kV

33 kV

International Standards (IEC, IEEE)

IEC 60038 and IEEE 1585 set the benchmarks for classifying medium voltage ranges in power system design and safety protocols.

---

Importance of Medium Voltage in Power Systems

Medium voltage bridges high-capacity transmission systems and user-level distribution networks. It enables:

Efficient long-range power delivery

Fault isolation through automated systems

Cost-effective voltage step-down using transformers

---

Role in Distribution and Control

MV equipment is widely used in substations to step down voltage from transmission lines before sending it to cities, industrial parks, or commercial hubs.

---

Medium Voltage vs Low Voltage Distribution

Feature	Medium Voltage	Low Voltage
Voltage Range	1 – 36 kV	≤ 1 kV
Applications	Grids, factories	Homes, devices
Equipment	Switchgear, relays	Fuses, breakers
Risk & Handling	Requires PPE, training	General safety

---

Medium Voltage Applications Across Industries

Utility Grids and Distribution Lines

Ensures controlled distribution from power plants to cities via substations.

Renewable Energy & Smart Grids

Used in wind farms and solar plants to manage energy flow into national grids.

Infrastructure: Airports, Hospitals, Data Centers

Guarantees reliable electricity in mission-critical operations.

---

Common Medium Voltage Equipment

Medium Voltage Switchgear – Protects and distributes power

Circuit Breakers – Interrupt faults

Transformers – Step-down or step-up voltage levels

Busbars & Cables – Distribute power across units

---

DSY Solutions for Medium Voltage Applications

Dongshengyuan (DSY) specializes in medium voltage systems, offering tailored switchgear and integrated power management solutions.

Medium Voltage Switchgear from DSY

Certified to IEC 62271 and IEEE C37 standards

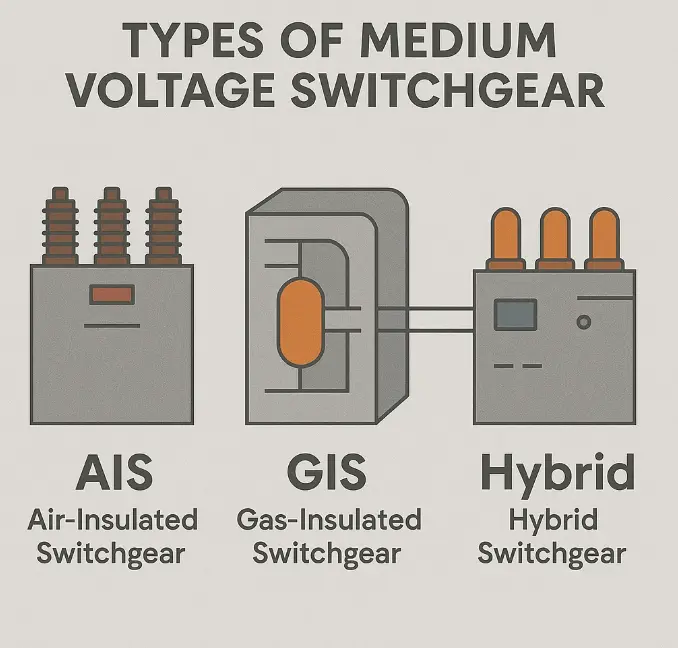

Available in AIS, GIS, and hybrid models

Integrated with smart monitoring capabilities

Custom Engineering and Safety Standards

DSY products are designed with safety, scalability, and efficiency in mind — ideal for large-scale grid systems and industry-specific needs.

Learn more at dsyswitchgear.com

---

FAQs about Medium Voltage

Q1: What voltage is considered medium voltage?
Typically from 1 kV to 36 kV, depending on regional standards.

Q2: What equipment uses medium voltage?
Switchgear, transformers, circuit breakers, relays, and substations.

Q3: Is medium voltage dangerous?
Yes. It requires special training and safety measures for handling.

Q4: Where is medium voltage applied?
In factories, airports, hospitals, wind farms, and grid substations.

Q5: What’s the difference between medium and high voltage?
High voltage is used for long-distance bulk transmission (above 36 kV), whereas medium voltage is for local distribution.

---

Conclusion: Why Medium Voltage Matters Today

From energy efficiency to smart grids, medium voltage is the unsung hero powering the world’s most vital systems. With DSY’s cutting-edge MV solutions, industries can count on safe, scalable, and standards-compliant power delivery.

Visit dsyswitchgear.com to explore DSY’s MV product lineup.
