Introduction
If you’re responsible for sourcing switchgear in critical industrial projects, one wrong choice can cost you more than just money—it can cause project delays, unscheduled downtime, and long-term inefficiencies. That’s why choosing between withdrawable and fixed switchgear isn’t just a technical decision—it’s a procurement risk assessment.
This article is designed specifically for purchasing managers and industrial decision-makers. It explains, in clear commercial terms, which type of switchgear makes the most business sense based on your facility’s operational priorities.
Switchgear Comparison: Functions, Advantages & Risks

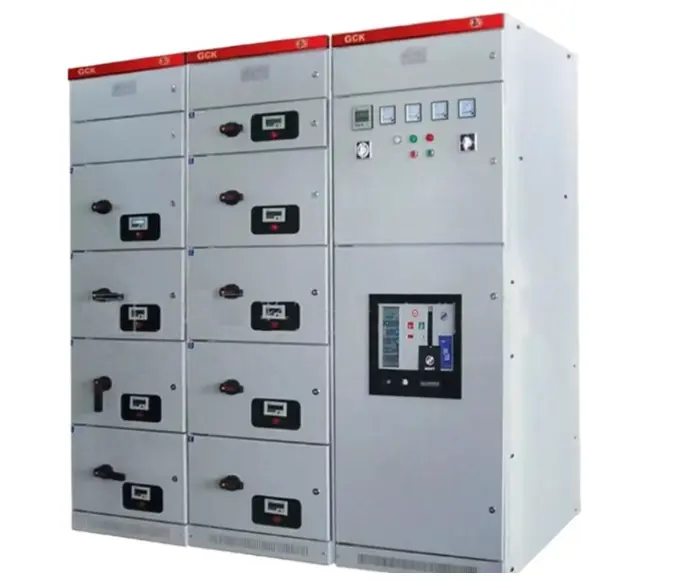

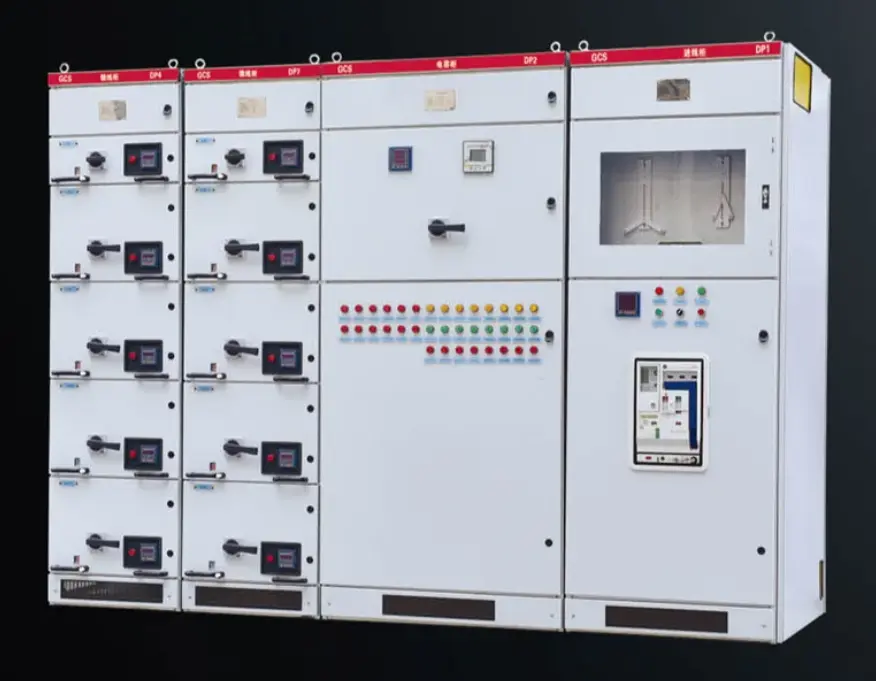

Withdrawable Switchgear: Minimize Downtime, Maximize Flexibility
Withdrawable switchgear allows breakers to be removed and replaced without shutting down the entire system. This reduces downtime and allows fast recovery from faults—key priorities for any buyer managing mission-critical operations.
What You Gain:
- Lower operational disruption during maintenance (reduced MTTR)
- Enhanced technician safety with interlocks and visible isolation
- Faster upgrade or expansion potential
What You Should Consider:
- Higher CapEx due to modular components and racking system
- Larger footprint, impacting panel room layout
- Requires experienced technicians for safe handling
Procurement Tip: Choose withdrawable switchgear if your plant operates 24/7 or can’t afford scheduled shutdowns.

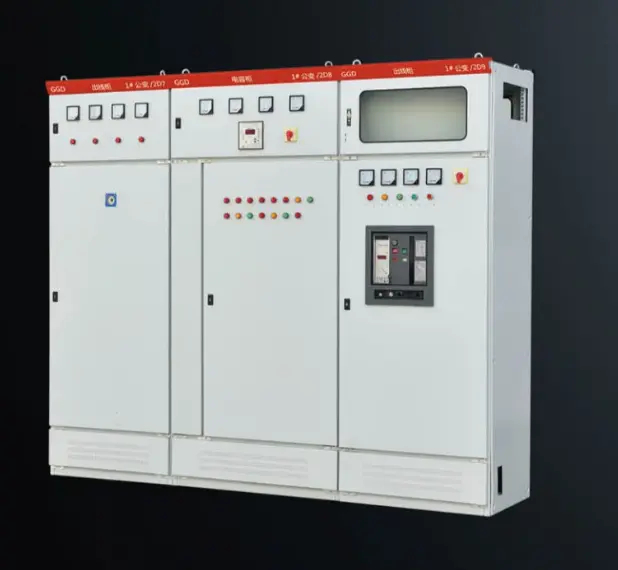

Fixed Switchgear: Lower Upfront Cost, Simpler Operation
Fixed switchgear offers permanently mounted breakers and a more compact design. It’s the preferred option in budget-constrained projects or where load conditions are stable.
What You Gain:
- Lower purchase and installation costs
- Smaller space requirements, ideal for compact substations
- Simpler construction = fewer moving parts = fewer maintenance issues
What You Should Consider:
- Requires system shutdown for breaker replacement
- Harder to reconfigure if system needs change in the future
Procurement Tip: Fixed switchgear works well in utility, commercial, or low-maintenance environments.
At-a-Glance Comparison
| Criteria | Withdrawable Switchgear | Fixed Switchgear |
|---|---|---|
| Maintenance Downtime | Minimal | Full shutdown required |
| Initial Investment | Higher | Lower |
| Safety Design | Interlocks, visual disconnects | Basic isolation protocols |
| Space Requirements | Larger | Compact |
| Upgrade Flexibility | High | Low |
| Best Fit | High-availability facilities | Budget-focused stable operations |
Safety, Compliance & Lifecycle Cost
Key Standards to Require
- IEC 62271-200 – High voltage metal-enclosed gear
- ANSI C37.x – Medium/low voltage switchgear standards
- NFPA 70E – Arc flash safety for maintenance crews
Procurement Tip: Always ask for the supplier’s test certificates and compliance matrix.
Lifecycle Cost Comparison
| Lifecycle Metric | Withdrawable Type | Fixed Type |
|---|---|---|
| CapEx | Higher | Lower |
| Operational Downtime Risk | Lower | Higher |
| Maintenance Complexity | Medium to high | Low |
| TCO over 10+ years | Lower in high-service systems | Higher if frequent servicing |
Procurement Tip: For plants with high maintenance frequency, the extra CapEx of withdrawable switchgear pays off over time.
FAQs for Procurement Managers
Q: Can fixed switchgear be retrofitted into withdrawable later?
A: No—doing so would require complete redesign.
Q: Which is safer for maintenance crews?
A: Withdrawable types with interlocks and isolation windows reduce arc flash exposure.
Q: Do both types support SCADA or smart systems?
A: Yes, but withdrawable types offer better flexibility for system diagnostics.
Final Recommendation
Choosing the wrong switchgear can create operational bottlenecks, increase long-term costs, and even endanger safety compliance. The right decision, however, ensures uptime, project agility, and maintenance efficiency.
Use this guide to align your technical specifications with your business goals—and avoid costly surprises down the road.
