Introduction to GIS Technology
Gas-insulated switchgear (often referred to as GIS) is a sealed metal-enclosed electrical switchgear that uses SF₆ gas as an insulating medium. It’s the go-to choice for space-limited, high-reliability power distribution needs in cities, offshore platforms, and modern industrial plants.
Core Concept of Gas-Insulated Systems
What Sets GIS Apart from Traditional Designs
Unlike air-insulated switchgear, GIS fully encloses conductors and components in gas-filled chambers, minimizing space usage and reducing maintenance needs.
Benefits of SF₆ Switchgear
- Compact installation footprint
- Resistance to environmental contamination
- Long operational lifespan with minimal service interruptions
Why GIS is a Preferred Choice
Optimized Use of Space
Urban substations can reduce area requirements by up to 70% compared to conventional AIS designs.
High Reliability
The sealed SF₆ environment ensures consistent insulation and fault protection, even in harsh climates.
Low Maintenance
Protected from dust, humidity, and pollution, GIS units require fewer interventions over decades of service.
Key Components of GIS
Insulating Gas System
The SF₆ gas acts as both an insulator and an arc quencher during switching operations.
Power Distribution Hardware
Includes circuit breakers, busbars, and disconnectors for efficient load control and isolation.
Protection and Monitoring
Relays and sensors constantly track performance and trigger safety mechanisms when needed.
How GIS Operates in Real-World Conditions

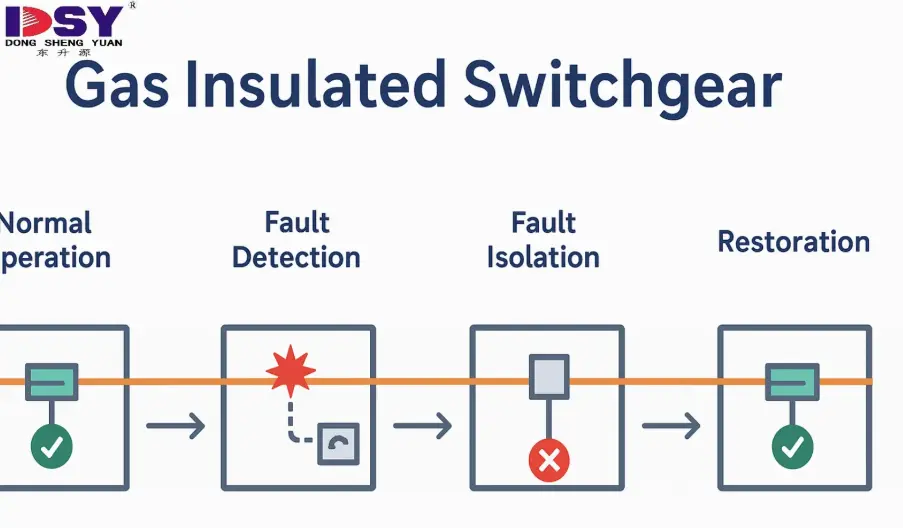

Gas-insulated switchgear operation diagram showing power flow and fault isolation
- Normal Operation – Power flows through busbars to outgoing feeders, continuously monitored.
- Fault Response – Relays detect anomalies, and breakers trip to isolate the problem area.
- System Recovery – Faulted sections are repaired and re-energized with minimal downtime.
Where GIS is Used

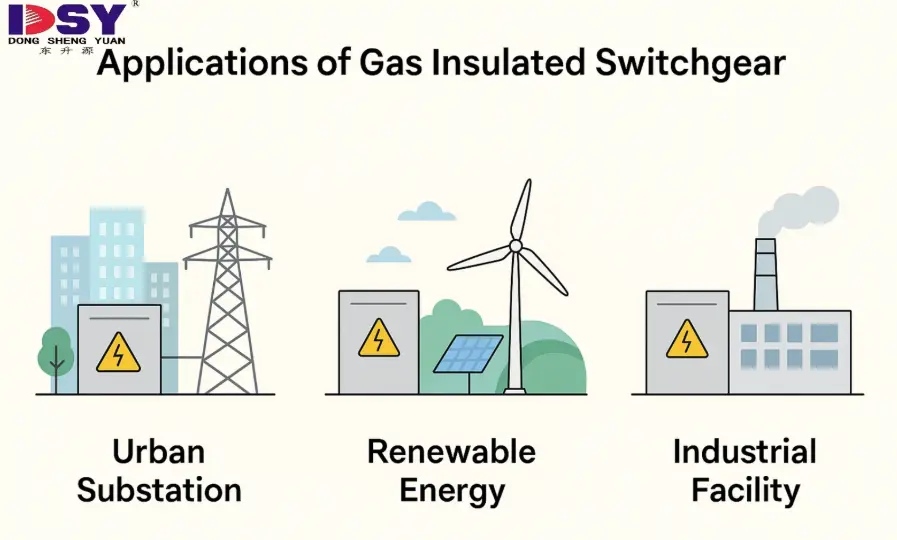

Applications of gas-insulated switchgear in urban substations and renewable energy facilities
- Urban Substations – Perfect for dense metropolitan grids.
- Renewable Energy – Integrates wind, solar, and hydro outputs into the main network.
- Industrial Plants – Safeguards critical processes and high-value machinery.
DSY GIS Solutions for Modern Power Systems
Dongshengyuan Electronic custom-engineered GIS switchgear solutions
Dongshengyuan Electronic (DSY) delivers GIS systems designed to meet the unique requirements of clients, ensuring compliance with IEC 62271 and IEEE C37 standards.
Learn more at dsyswitchgear.com
See SF₆ handling guidelines at International Electrotechnical Commission (external link)
FAQs on Gas Insulated Switchgear
Gas-insulated switchgear FAQs illustrated with diagrams
Q1: What is gas-insulated switchgear used for?
A: Safe, space-efficient power distribution in cities, plants, and offshore facilities.
Q2: Is SF₆ gas safe?
A: Yes, when handled properly. It is non-flammable and non-toxic but must be managed to avoid environmental impact.
Q3: How long can GIS last?
A: Typically 30–40 years with minimal servicing.
Conclusion – The Growing Role of GIS
Gas-insulated switchgear is setting new benchmarks for space efficiency, safety, and reliability in modern electrical networks. By adopting DSY GIS solutions, operators ensure long-term stability and compliance with global standards.
Visit dsyswitchgear.com to explore GIS options for your project.
